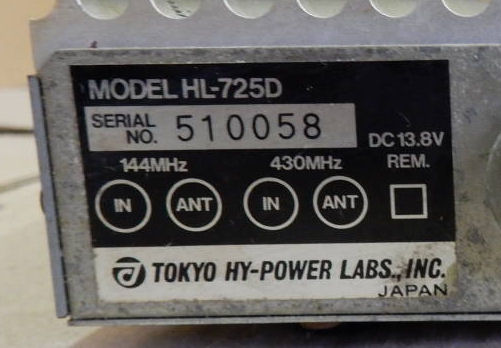

Tokyo Hy-Power HL-725D
| Type: |
HF all-mode Linear Amplifier |
| Frequency Range: |
144-148 / 430-440 MHz (2 m & 70 cm) |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 9 A |
| Drive power: |
1-15 W |
| Maximum output power: |
Max 60 W |
| Dimensions (W*H*D): |
250 x 42 x 173 mm |
| Weight: |
2.7 Kg) |
| Manufactured: |
Japan: 19xx-19xx (Discontinued) |
| Other: |
Built-in RX Converter: 870 MHz to 70 cm
Accessory DC Output Jack: 13.8 VDC, 2 A |
| Related Documents: |
User Manual (473 kb) |
 |
